| Basic Information | |||

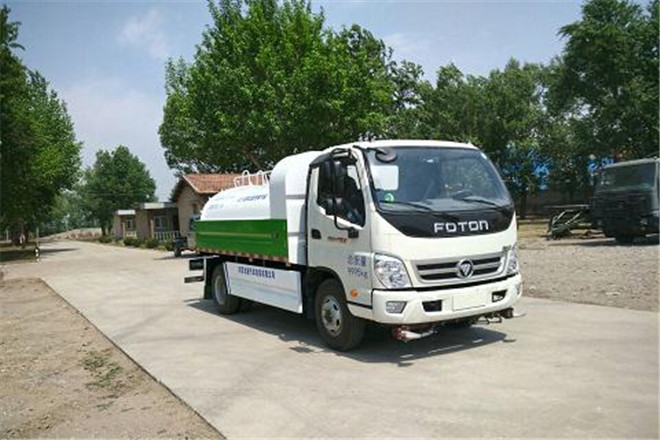

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 6400mm | ||
| Width | 2165mm | ||
| Height | 2390mm | ||
| Curb Weight | 4810kg | ||
| Gross Weight | 9995kg | ||
| Seats | 3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | BJ1109VFJEA-F1 | ||
| Front/Rear Overhang | 1120/1885mm | ||
| Number of Leaf Springs | 9/11+7,3+1/6+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 3600/6395kg | ||
| Front Wheel Track | 1665mm | ||
| Rear Wheel Track | 1630mm | ||
| Approaching/Departuring Angle | 14/11° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25R16 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF3.8E6154 | Beijing Foton Cummins Engine Corporation | 115kW | 3760ml |
