| Basic Information | |||

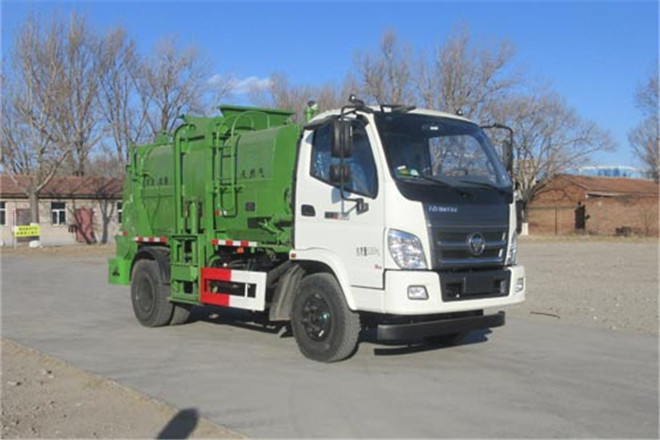

| Usage | Refuse Collector | ||
| Fuel Type | Natural gas | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB18285-2005,GB11340-2005 | ||
| Length | 6075mm | ||
| Width | 2175mm | ||
| Height | 2700mm | ||
| Curb Weight | 6035kg | ||
| Gross Weight | 8280kg | ||
| Seats | 2 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | BJ1083VFJCA-FA | ||
| Front/Rear Overhang | 1230/1545mm | ||
| Number of Leaf Springs | 8/8+5,10/12+9 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3300mm | ||
| Axle Load | 3000/5280kg | ||
| Front Wheel Track | 1620mm | ||
| Rear Wheel Track | 1669mm | ||
| Approaching/Departuring Angle | 22/18° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25-16 12PR,8.25R16 12PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YN38QNE | Kunming Yunnei Power Co., Ltd. | 95kW | 3762ml |
| YN38QNE | Chengdu Yunnei Power Co., Ltd. | 95kW | 3762ml |
