| Basic Information | |||

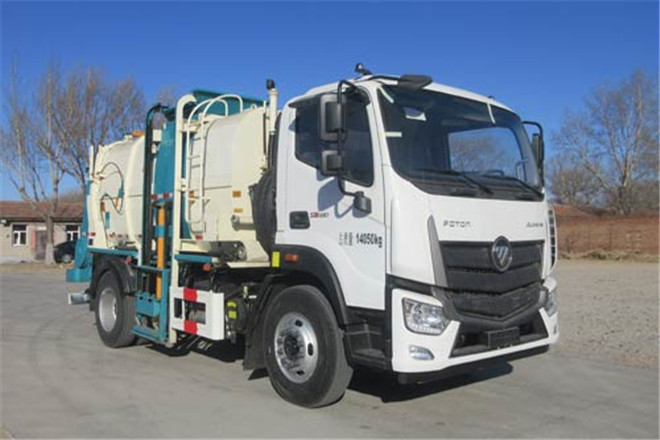

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 6915mm | ||
| Width | 2445mm | ||
| Height | 3115mm | ||
| Curb Weight | 8320kg | ||
| Gross Weight | 14050kg | ||
| Seats | 2 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | BJ1146VKJFD-1K | ||
| Front/Rear Overhang | 1270/1845mm | ||
| Number of Leaf Springs | 10/10+8,3/4+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800,4200mm | ||
| Axle Load | 4850/9200kg | ||
| Front Wheel Track | 1952,1972mm | ||
| Rear Wheel Track | 1840mm | ||
| Approaching/Departuring Angle | 18/17° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 16PR,10.00R20 18PR,10R22.5 16PR,11R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| F4.5NS6B190 | Beijing Foton Cummins Engine Corporation | 140kW | 4500ml |
