| Basic Information | |||

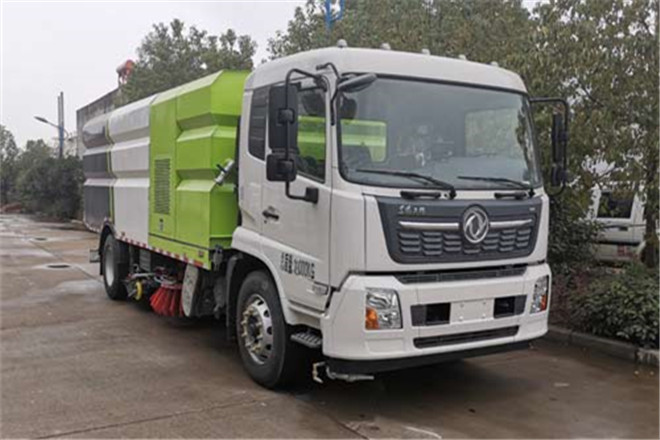

| Usage | Vacuum Sweeper | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 8350,8650mm | ||
| Width | 2470mm | ||
| Height | 3130mm | ||
| Curb Weight | 11800kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2,3 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | DFH1180EX8, second-class, Dongfeng Trucks Co., Ltd. | ||
| Front/Rear Overhang | 1430/2220mm | ||
| Number of Leaf Springs | 7/9+6,8/10+8,8/9+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4700,5000mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1876,1896,1920,1950,1914,1934,1980,2000mm | ||
| Rear Wheel Track | 1820,1860mm | ||
| Approaching/Departuring Angle | 17/21° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D6.7NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6700ml |
| B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 154kW | 6200ml |
| DDi50E190-60 | Dongfeng Trucks Co., Ltd. | 147kW | 5000ml |
| D4.5NS6B190 | Dongfeng Cummins Engine Co., Ltd. | 140kW | 4500ml |
