| Basic Information | |||

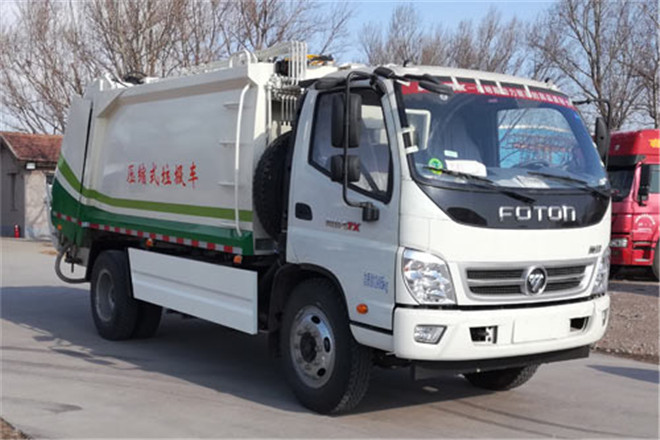

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 7300,7535mm | ||
| Width | 2280,2235mm | ||
| Height | 2770,2810mm | ||
| Curb Weight | 6800kg | ||
| Gross Weight | 12495kg | ||
| Seats | 3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | BJ1129VKJEA-F1 | ||
| Front/Rear Overhang | 1195/2305,1195/2035mm | ||
| Number of Leaf Springs | 9/11+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800mm | ||
| Axle Load | 4480/8015kg | ||
| Front Wheel Track | 1710mm | ||
| Rear Wheel Track | 1680mm | ||
| Approaching/Departuring Angle | 23/10,23/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25R20 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF3.8E6154 | Beijing Foton Cummins Engine Corporation | 115kW | 3760ml |
