| Basic Information | |||

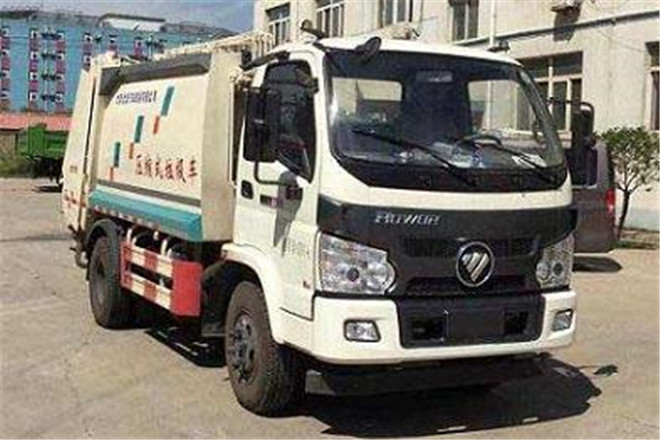

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 6695mm | ||
| Width | 2110mm | ||
| Height | 2520mm | ||
| Curb Weight | 5750kg | ||
| Gross Weight | 8280kg | ||
| Seats | 2 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | BJ3086DEPDA-1 | ||
| Front/Rear Overhang | 1220/1905mm | ||
| Number of Leaf Springs | 8/8+5,10/12+9 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3300,3200mm | ||
| Axle Load | 2880/5400kg | ||
| Front Wheel Track | 1650,1560mm | ||
| Rear Wheel Track | 1600,1540mm | ||
| Approaching/Departuring Angle | 17/18° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50-16 16PR,7.50R16 16PR,8.25-16 16PR,8.25R16 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF2.8s5R117 | Beijing Foton Cummins Engine Corporation | 87kW | 2780ml |
| 4B2-95C50 | Anhui Quanchai Power Co., Ltd. | 70kW | 2545ml |
| YC4FQ100-52 | Guangxi Yuchai Machinery Co., Ltd. | 73kW | 2500ml |
| WP3Q124E50 | Weichai Power Yangzhou Diesel Co., Ltd. | 91kW | 2970ml |
| YC4FA120-50 | Guangxi Yuchai Machinery Co., Ltd. | 88kW | 2982ml |
| YN38CRE1 | Kunming Yunnei Power Co., Ltd. | 95kW | 3760ml |
