| Basic Information | |||

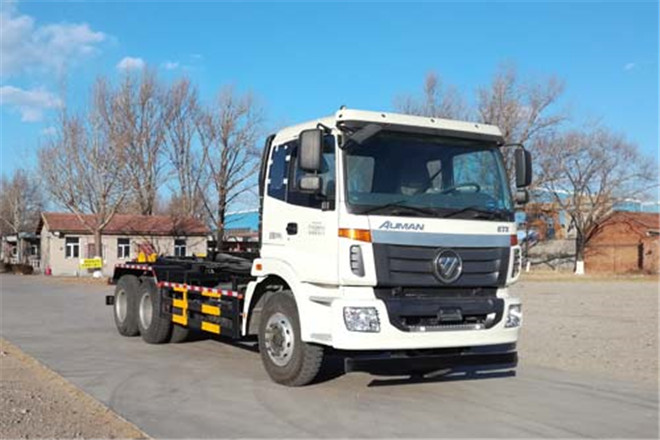

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 8332mm | ||
| Width | 2525mm | ||
| Height | 3120mm | ||
| Curb Weight | 10600kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | BJ1252VMPHE-AB | ||
| Front/Rear Overhang | 1532/1200mm | ||
| Number of Leaf Springs | 9/12,3/5,3/4,2/4,10/10 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4300+1300mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 1960mm | ||
| Rear Wheel Track | 1860/1860mm | ||
| Approaching/Departuring Angle | 16/23° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00R20 18PR,11.00-20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISD245 50 | Dongfeng Cummins Engine Co., Ltd. | 180kW | 6700ml |
| ISD270 50 | Dongfeng Cummins Engine Co., Ltd. | 198kW | 6700ml |
