| Basic Information | |||

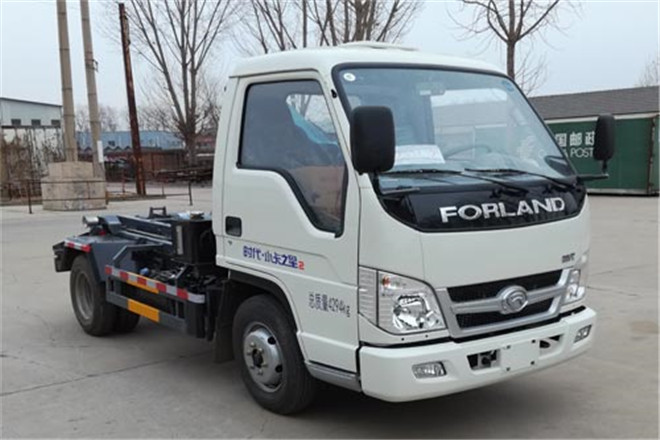

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards,GB3847-2005 | ||
| Length | 4630mm | ||
| Width | 1695mm | ||
| Height | 2080mm | ||
| Curb Weight | 2164kg | ||
| Gross Weight | 4294kg | ||
| Seats | 2 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | BJ1042V9JB5-A1 | ||
| Front/Rear Overhang | 1115/915mm | ||
| Number of Leaf Springs | 7/5+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2600,2850mm | ||
| Axle Load | 1650/2644kg | ||
| Front Wheel Track | 1345mm | ||
| Rear Wheel Track | 1240,1280mm | ||
| Approaching/Departuring Angle | 18/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.00-15LT 10PR,6.00R15LT 10PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 4A2-68C50 | Anhui Quanchai Power Co., Ltd. | 50kW | 2270ml |
| D19TCIE1 | Kunming Yunnei Power Co., Ltd. | 75kW | 1912ml |
| 4A2-88C50 | Anhui Quanchai Power Co., Ltd. | 65kW | 2270ml |
