| Basic Information | |||

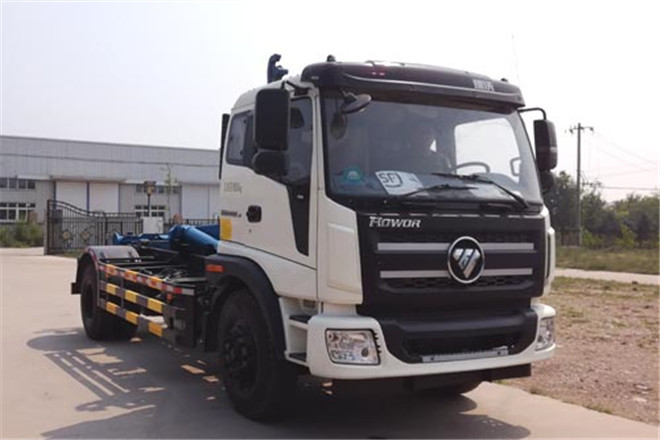

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 7110mm | ||
| Width | 2515mm | ||
| Height | 3200mm | ||
| Curb Weight | 8260kg | ||
| Gross Weight | 15800kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | BJ1166VJPHD-1 | ||
| Front/Rear Overhang | 1350/1260mm | ||
| Number of Leaf Springs | 10/12+9,8/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4500,3800mm | ||
| Axle Load | 5510/10290kg | ||
| Front Wheel Track | 1958mm | ||
| Rear Wheel Track | 1864mm | ||
| Approaching/Departuring Angle | 20/17° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00-20,10.00R20,9.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC6J200-50 | Guangxi Yuchai Machinery Co., Ltd. | 147kW | 6500ml |
| YC6J200-52 | Guangxi Yuchai Machinery Co., Ltd. | 147kW | 6494ml |
