| Basic Information | |||

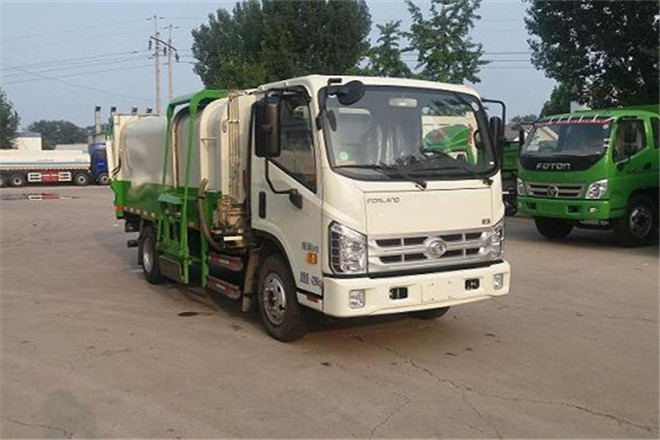

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5995mm | ||
| Width | 2485mm | ||
| Height | 2455mm | ||
| Curb Weight | 3500kg | ||
| Gross Weight | 4290kg | ||
| Seats | 3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | BJ1043V8JDA-K1 | ||
| Front/Rear Overhang | 1150/1485mm | ||
| Number of Leaf Springs | 4/6+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 1640/2650kg | ||
| Front Wheel Track | 1550,1730mm | ||
| Rear Wheel Track | 1590mm | ||
| Approaching/Departuring Angle | 21/13° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00R16 6PR,7.00-16 6PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 4B2-115C50 | Anhui Quanchai Power Co., Ltd. | 85，96，81，85，70，75，105kW | 2545ml |
| ISF2.8s5129T | Beijing Foton Cummins Engine Corporation | 2780ml | |
| 4J28TC3 | Foton Motor Co., Ltd. | 2771ml | |
| YN33CRE1 | Kunming Yunnei Power Co., Ltd. | 3298ml | |
| YN27CRE1 | Kunming Yunnei Power Co., Ltd. | 2672ml | |
| CY4BK551 | Dongfeng Chaoyang Diesel Co., Ltd. | 3707ml | |
| D25TCIE1 | Kunming Yunnei Power Co., Ltd. | 2499ml | |
