| Basic Information | |||

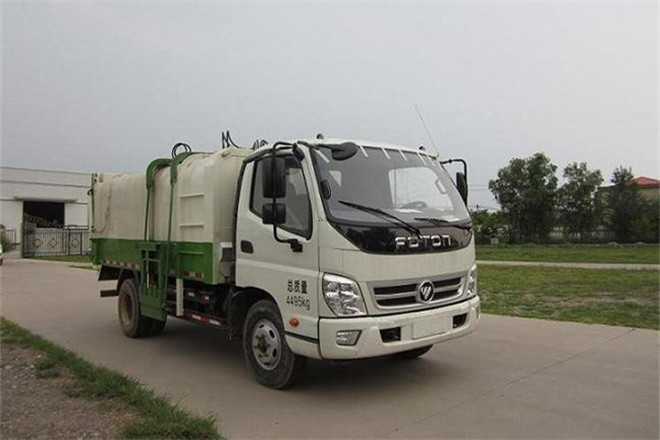

| Usage | Refuse Collector | ||
| Fuel Type | Natural gas | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB11340-2005,GB18285-2005 | ||
| Length | 5810mm | ||
| Width | 2410mm | ||
| Height | 2450mm | ||
| Curb Weight | 3965kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | BJ1049V9JEA-BA | ||
| Front/Rear Overhang | 1120/1330mm | ||
| Number of Leaf Springs | 3+1/6+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 1850/2645kg | ||
| Front Wheel Track | 1530,1730mm | ||
| Rear Wheel Track | 1485,1590mm | ||
| Approaching/Departuring Angle | 21/16° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00-16 8PR,7.00R16 8PR,7.00R16 10PR,7.50-16 6PR,7.50R16 6PR,7.50R16 8PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YN36QNE | Kunming Yunnei Power Co., Ltd. | 85kW | 3612ml |
