| Basic Information | |||

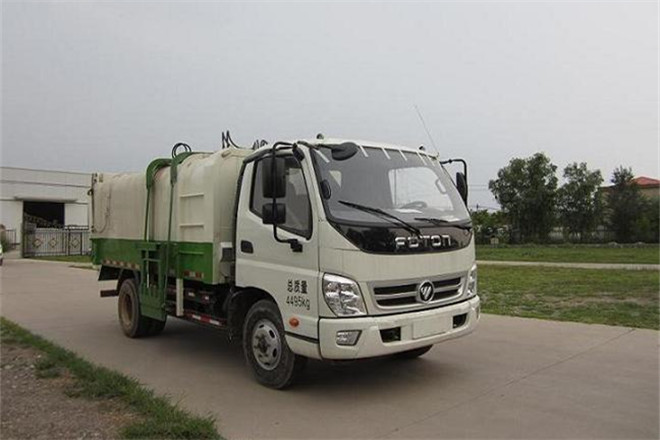

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5995mm | ||
| Width | 2480,2340mm | ||
| Height | 2370mm | ||
| Curb Weight | 3700kg | ||
| Gross Weight | 4495kg | ||
| Seats | 3,2 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | BJ1049V9JDA-A1 | ||
| Front/Rear Overhang | 1085/1550mm | ||
| Number of Leaf Springs | 3+1/6+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 1700/2795kg | ||
| Front Wheel Track | 1530,1730mm | ||
| Rear Wheel Track | 1485,1590mm | ||
| Approaching/Departuring Angle | 21/15° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50R16 8PR,6.50R16 10PR,6.50R16 12PR,7.00R16 8PR,7.50R16 6PR,7.00R16 10PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 4J28TC3 | Foton Motor Co., Ltd. | 81kW | 2771ml |
| 4J28TC5 | Foton Motor Co., Ltd. | 81kW | 2771ml |
