| Basic Information | |||

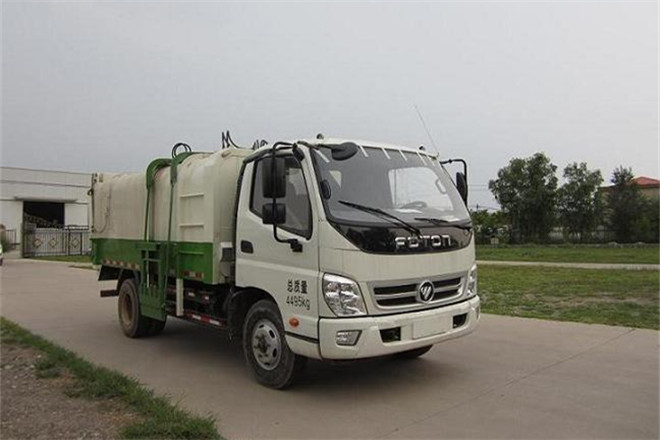

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 natiional Ⅴ emission standards, GB3847-2005 | ||
| Length | 5995mm | ||
| Width | 2445,2340mm | ||
| Height | 2545mm | ||
| Curb Weight | 3620kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2，3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | BJ1049V8JEA-F2 | ||
| Front/Rear Overhang | 1120/1515mm | ||
| Number of Leaf Springs | 3+1/6+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 1750/2745kg | ||
| Front Wheel Track | 1530,1730mm | ||
| Rear Wheel Track | 1485,1590mm | ||
| Approaching/Departuring Angle | 22/15.5° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00-16 8PR,7.00R16 8PR,7.50-16 6PR,7.50R16 6PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF3.8E6154 | Beijing Foton Cummins Engine Corporation | 115kW | 3760ml |
| ISF2.8s5R117 | Beijing Foton Cummins Engine Corporation | 87kW | 2780ml |
