| Basic Information | |||

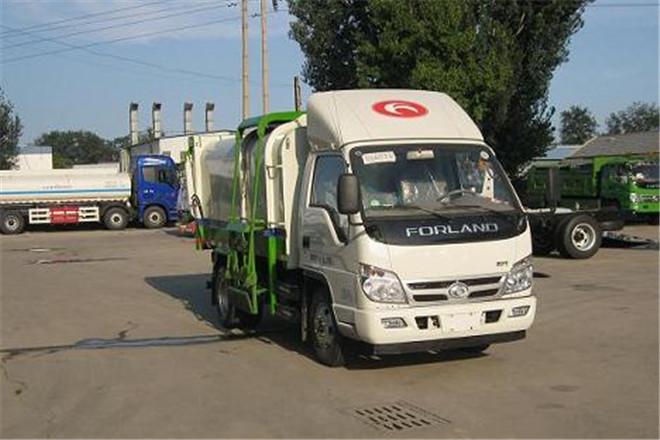

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5355mm | ||
| Width | 2265mm | ||
| Height | 2470mm | ||
| Curb Weight | 3520kg | ||
| Gross Weight | 4395kg | ||
| Seats | 2 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | BJ1046V9JB5-F1 | ||
| Front/Rear Overhang | 1100/1405mm | ||
| Number of Leaf Springs | 7/7+5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2850mm | ||
| Axle Load | 1670/2725kg | ||
| Front Wheel Track | 1415mm | ||
| Rear Wheel Track | 1435mm | ||
| Approaching/Departuring Angle | 23/22° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50-16LT,6.50R16LT | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 4A2-88C50 | Anhui Quanchai Power Co., Ltd. | 65kW | 2270ml |
| D19TCIE1 | Kunming Yunnei Power Co., Ltd. | 75kW | 1912ml |
