| Basic Information | |||

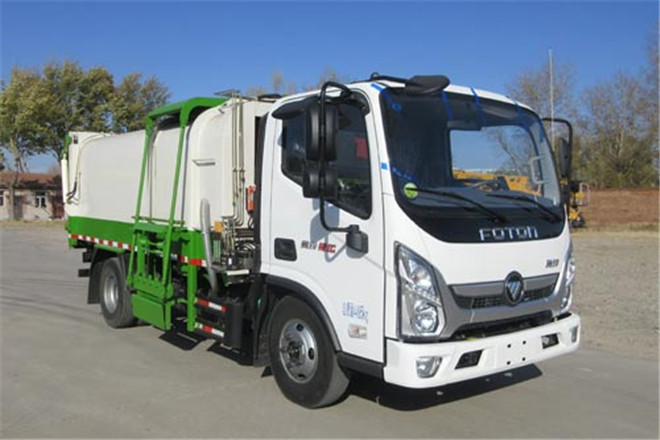

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 natonal Ⅵ emission standards | ||
| Length | 5985mm | ||
| Width | 2470mm | ||
| Height | 2420mm | ||
| Curb Weight | 3705kg | ||
| Gross Weight | 4495kg | ||
| Seats | 3 | ||
| Max Speed | 105km/h | ||
| Chassis | |||
| Chassis Model | BJ1048V9JDA-AB3, second-class, Foton Motor Co., Ltd. | ||
| Front/Rear Overhang | 1110/1515mm | ||
| Number of Leaf Springs | 3/5+2,3/8+6,3/3+2,2/2+1,9/8+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 1575/2920kg | ||
| Front Wheel Track | 1590,1730mm | ||
| Rear Wheel Track | 1590,1615,1800mm | ||
| Approaching/Departuring Angle | 20/20° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50R16LT 6PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| F2.8NS6B131 | Beijing Foton Cummins Engine Corporation | 96kW | 2780ml |
| Q28-130E60 | Anhui Quanchai Power Co., Ltd. | 96kW | 2800ml |
| Q28-130C60 | Anhui Quanchai Power Co.., Ltd. | 96kW | 2800ml |
