| Basic Information | |||

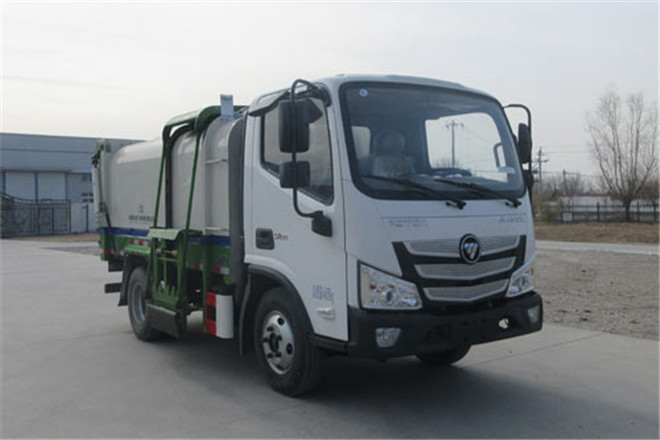

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 5195mm | ||
| Width | 2175mm | ||
| Height | 2345mm | ||
| Curb Weight | 3615kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2 | ||
| Max Speed | 105km/h | ||
| Chassis | |||
| Chassis Model | BJ1044V9JD3-FK | ||
| Front/Rear Overhang | 1110/1435mm | ||
| Number of Leaf Springs | 3/5+2,3/3+2,3/4+2 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2650mm | ||
| Axle Load | 1850/2645kg | ||
| Front Wheel Track | 1445mm | ||
| Rear Wheel Track | 1425mm | ||
| Approaching/Departuring Angle | 19/17° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00R16LT 8PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| F2.8NS6B131 | Beijing Foton Cummins Engine Corporation | 96kW | 2780ml |
