| Basic Information | |||

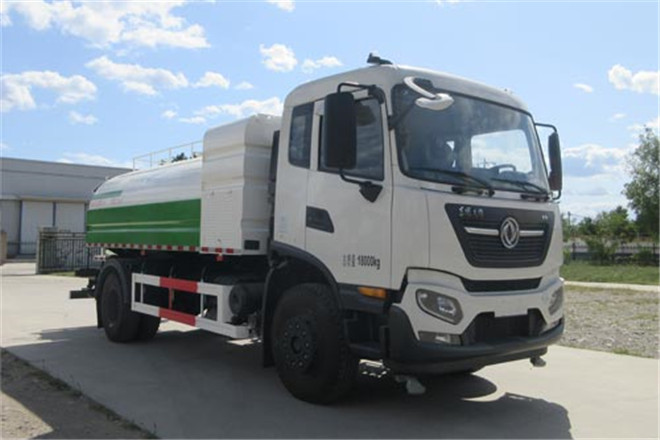

| Usage | Street Sprinkler | ||
| Fuel Type | Natural gas | ||
| Emission Standard | GB18285-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 8235,9220mm | ||
| Width | 2470mm | ||
| Height | 2980mm | ||
| Curb Weight | 8280kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2,3 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | DFV1182GP6NJ, second-class, Dongfeng Trucks Xinjiang Branch | ||
| Front/Rear Overhang | 1400/2335mm | ||
| Number of Leaf Springs | 8/10+7,8/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4500mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1810,1880,1900,1940,1965mm | ||
| Rear Wheel Track | 1800,1820,1860mm | ||
| Approaching/Departuring Angle | 14/12,7/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00R20 16PR,10.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YCA07260N-60 | Guangxi Yuchai Machinery Co., Ltd. | 191kW | 6871ml |
| YCA07245N-60 | Guangxi Yuchai Machinery Co., Ltd. | 180kW | 6871ml |
| YCA07220N-60 | Guangxi Yuchai Machinery Co., Ltd. | 162kW | 6871ml |
| YCA07190N-60 | Guangxi Yuchai Machinery Co., Ltd. | 140kW | 6871ml |
