| Basic Information | |||

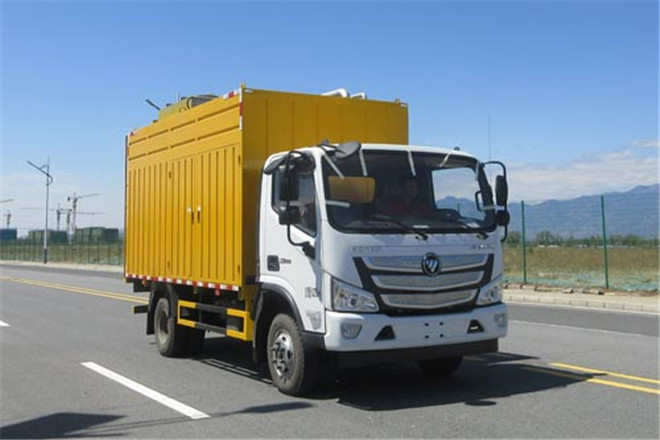

| Usage | Suction-type Sewer Scavenger | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 6225mm | ||
| Width | 2150mm | ||
| Height | 3440mm | ||
| Curb Weight | 8080kg | ||
| Gross Weight | 8275kg | ||
| Seats | 3 | ||
| Max Speed | 105km/h | ||
| Chassis | |||
| Chassis Model | BJ1088VEJEA-FK | ||
| Front/Rear Overhang | 1130/1735mm | ||
| Number of Leaf Springs | 9/8+6,3/4+3,3/8+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360,3800,4200mm | ||
| Axle Load | 3000/5275kg | ||
| Front Wheel Track | 1705,1730mm | ||
| Rear Wheel Track | 1615,1630,1715,1800mm | ||
| Approaching/Departuring Angle | 20/17° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50R16LT 14PR,8.25R16LT 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| F3.8NS6B156 | Beijing Foton Cummins Engine Corporation | 115kW | 3800ml |
| D30TCIF1 | Kunming Yunnei Power Co., Ltd. | 125kW | 2977ml |
| CY4SK261 | Dongfeng Chaoyang Diesel Co., Ltd. | 125kW | 3856ml |
| F2.8NS6B156 | Beijing Foton Cummins Engine Corporation | 115kW | 2780ml |
