| Basic Information | |||

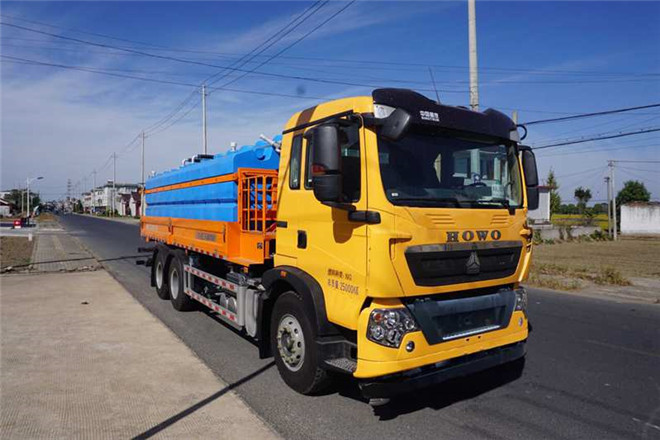

| Usage | Snow Sweeper | ||
| Fuel Type | Natural gas | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB18285-2005,GB11340-2005 | ||
| Length | 10690,10452mm | ||
| Width | 2550mm | ||
| Height | 3390mm | ||
| Curb Weight | 14335kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | ZZ1257N464GE1CL | ||
| Front/Rear Overhang | 1668/3072,1430/3072mm | ||
| Number of Leaf Springs | 11/10,3/10,3/4,3/- | ||
| Number of Axles | 3 | ||
| Wheelbase | 4075+1400,4100+1350,4275+1400,4300+1350,4575+1400,4600+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 2015,2035mm | ||
| Rear Wheel Track | 1830/1830,1850/1850mm | ||
| Approaching/Departuring Angle | 15/9,19/9° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 295/80R22.5,12R22.5,11.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| MT07.24-50 | China National Heavy Duty Truck Group Co., Ltd. | 176kW | 6870ml |
| MT07.26-50 | China National Heavy Duty Truck Group Co., Ltd. | 191kW | 6870ml |
| MT07.29-50 | China National Heavy Duty Truck Group Co., Ltd. | 216kW | 6870ml |
