| Basic Information | |||

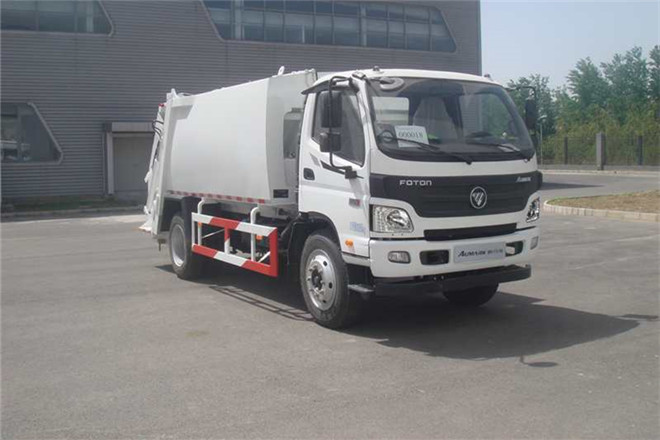

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 naitonal Ⅴ emission standards, GB3847-2005 | ||
| Length | 6920,7240,7280,7450mm | ||
| Width | 2340mm | ||
| Height | 2700mm | ||
| Curb Weight | 6960kg | ||
| Gross Weight | 11995kg | ||
| Seats | 3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | BJ5129XXY-A1 | ||
| Front/Rear Overhang | 1185/1935mm | ||
| Number of Leaf Springs | 9/11+7,9/10+10,3/7+6,3/8+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800mm | ||
| Axle Load | 4200/7795kg | ||
| Front Wheel Track | 1710,1740,1730mm | ||
| Rear Wheel Track | 1630,1615mm | ||
| Approaching/Departuring Angle | 22/11° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25-20 16PR, 8.25R20 16PR,9R22.5 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF3.8E6154 | Beijing Foton Cummins Engine Corporation | 115kW | 3760ml |
