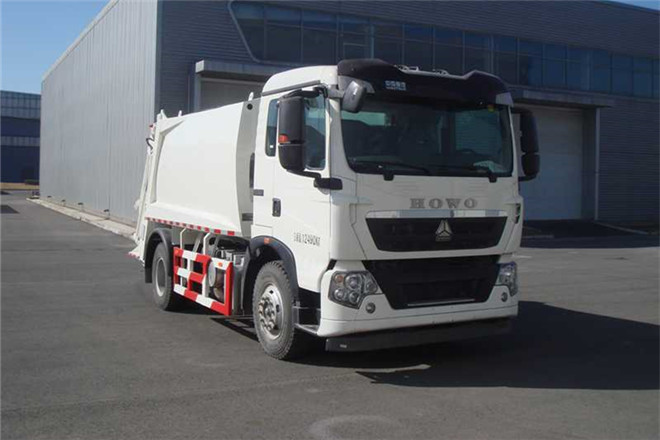

Beijing Chiyuan BSP5121ZYS Compression Refuse Collector

Basic Information
Usage	Refuse Collector
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	7470,7790,7830,8000mm
Width	2490mm
Height	3020mm
Curb Weight	9160kg
Gross Weight	12490kg
Seats	2
Max Speed	101km/h
Chassis
Chassis Model	ZZ1127K381GE1
Front/Rear Overhang	1430/2240mm
Number of Leaf Springs	11/9+8,3/9+8,3/3+2
Number of Axles	2
Wheelbase	3500,3650,3800mm
Axle Load	4200/8290kg
Front Wheel Track	1930,1960mm
Rear Wheel Track	1800,1860mm
Approaching/Departuring Angle	19/12°
Tire
Number of Tires	6
Tire	10.00R20 14PR,9.00R20,10.00-20 14PR,9.00-20
Engine
Model	Brand	Power	Displacement
MC05.16-50	China National Heavy Duty Truck Group Co., Ltd.	118kW	4580ml
MC05.18-50	China National Heavy Duty Truck Group Co., Ltd.	132kW	4580ml
MC05.21-50	China National Heavy Duty Truck Group Co., Ltd.	151kW	4580ml
MC07.21-50	China National Heavy Duty Truck Group Co., Ltd.	151kW	6870ml
MC07.24-50	China National Heavy Duty Truck Group Co., Ltd.	176kW	6870ml
MC07.24-52	China National Heavy Duty Truck Group Co., Ltd.	176kW	6870ml
