| Basic Information | |||

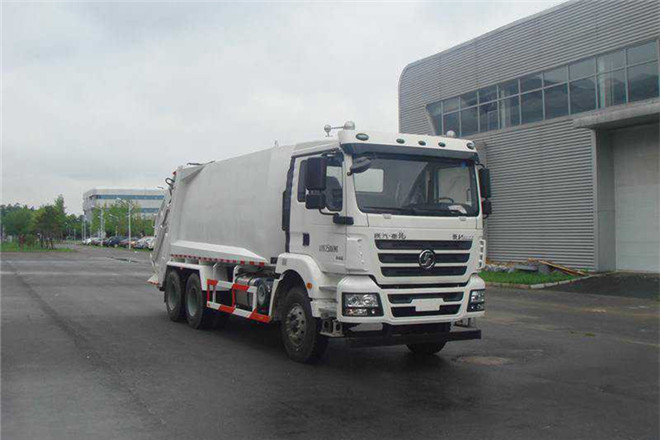

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 9720,10090,10290,10370mm | ||
| Width | 2500mm | ||
| Height | 3340mm | ||
| Curb Weight | 14560kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | SX1250MB4 | ||
| Front/Rear Overhang | 1525/2470mm | ||
| Number of Leaf Springs | 3/5,10/12,10/10 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4375+1350,4575+1350,4375+1400,4575+1400,4975+1400,5575+1400,5775+1400mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 2011,2036mm | ||
| Rear Wheel Track | 1860/1860mm | ||
| Approaching/Departuring Angle | 18/12° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00R20,12.00R20 16PR,12R22.5,295/80R22.5,315/60R22.5 20PR/295/60R22.5 18PR/295/60R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP6.245E50 | Weichai (Weifang) Medium Diesel Co., Ltd. | 180kW | 6750ml |
| WP7.270E51 | Weichai Holding Group | 199kW | 7470ml |
| WP7.300E51 | Weichai Holding Group | 220kW | 7470ml |
| WP10.310E53 | Weichai Holding Group | 228kW | 9726ml |
| WP9H310E50 | Weichai Holding Group | 228kW | 8800ml |
| WP10.336E53 | Weichai Holding Group | 247kW | 9726ml |
| ISD285 50 | Dongfeng Cummins Engine Co., Ltd. | 210kW | 6700ml |
