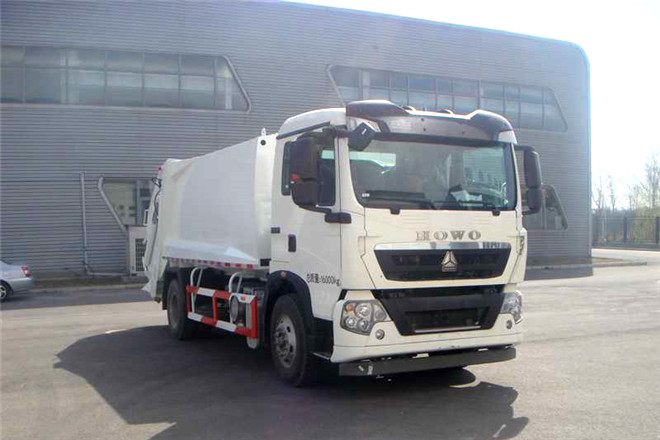

Beijing Chiyuan BSP5160ZYS Compression Refuse Collector

Basic Information
Usage	Refuse Collector
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	8730,9300,9100,9380mm
Width	2490mm
Height	3050mm
Curb Weight	11430kg
Gross Weight	16000kg
Seats	2
Max Speed	101km/h
Chassis
Chassis Model	ZZ1167K501GE1
Front/Rear Overhang	1430/2800mm
Number of Leaf Springs	11/9+8,3/9+8,3/3+2
Number of Axles	2
Wheelbase	4500,4700,5000mm
Axle Load	6000/10000kg
Front Wheel Track	1930,1960,2045mm
Rear Wheel Track	1800,1860,1860mm
Approaching/Departuring Angle	19/10°
Tire
Number of Tires	6
Tire	275/80R22.5,10.00R20,10.00-20
Engine
Model	Brand	Power	Displacement
MC05.16-50	China National Heavy Duty Truck Group Co., Ltd.	118kW	4580ml
MC05.18-50	China National Heavy Duty Truck Group Co., Ltd.	132kW	4580ml
MC05.21-50	China National Heavy Duty Truck Group Co., Ltd.	151kW	4580ml
MC07.21-50	China National Heavy Duty Truck Group Co., Ltd.	151kW	6870ml
MC07.24-50	China National Heavy Duty Truck Group Co., Ltd.	176kW	6870ml
MC07.24-52	China National Heavy Duty Truck Group Co., Ltd.	176kW	6870ml
