| Basic Information | |||

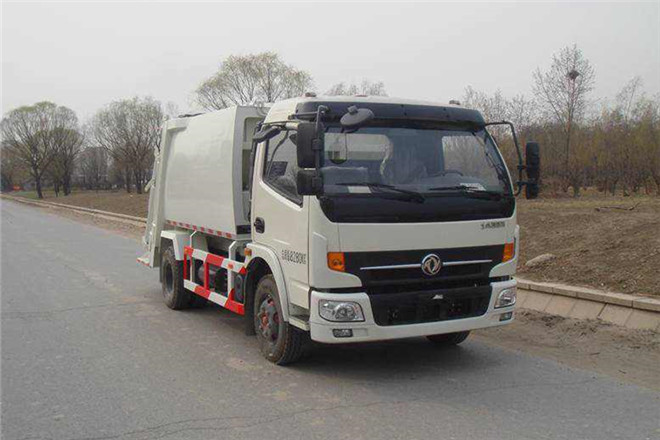

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 6480,6800,6840,7010mm | ||
| Width | 2100mm | ||
| Height | 2530mm | ||
| Curb Weight | 5880kg | ||
| Gross Weight | 8280kg | ||
| Seats | 3 | ||
| Max Speed | 103km/h | ||
| Chassis | |||
| Chassis Model | EQ1080SJ8BD2 | ||
| Front/Rear Overhang | 1130/2042mm | ||
| Number of Leaf Springs | 8/10+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3308mm | ||
| Axle Load | 3300/4980kg | ||
| Front Wheel Track | 1769,1757mm | ||
| Rear Wheel Track | 1629,1602,1800mm | ||
| Approaching/Departuring Angle | 20/10° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25R16 14PR,7.50R16 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC4S140-50 | Guangxi Yuchai Machinery Co., Ltd. | 103kW | 3767ml |
| ISF3.8s5141 | Beijing Foton Cummins Engine Corporation | 105kW | 3760ml |
| YN38CRE1 | Kunming Yunnei Power Co., Ltd. | 95kW | 3760ml |
