| Basic Information | |||

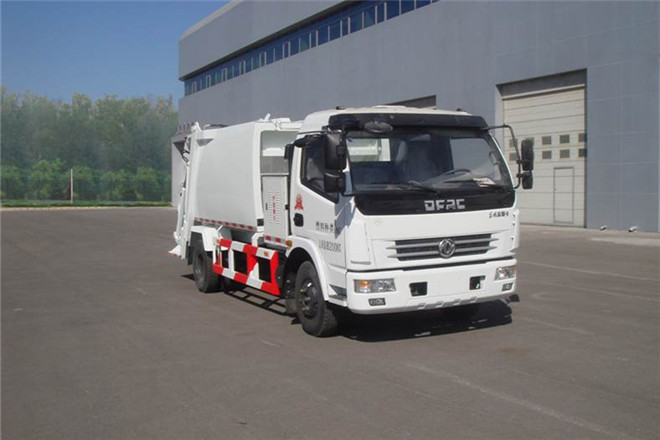

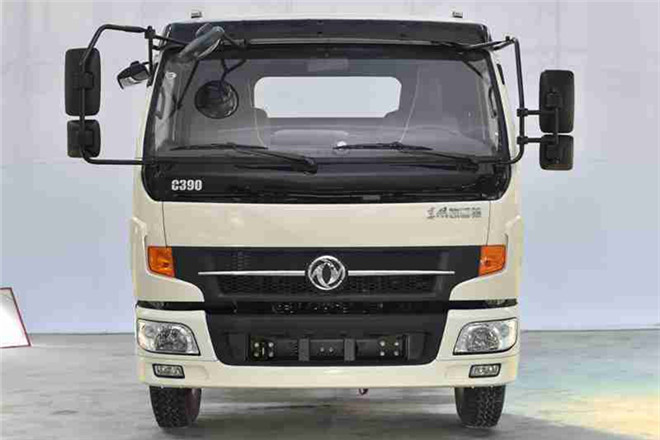

| Usage | Refuse Collector | ||
| Fuel Type | Natural gas | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB18285-2005,GB11340-2005 | ||
| Length | 6860,7180,7220,7390mm | ||
| Width | 2120mm | ||
| Height | 2530mm | ||
| Curb Weight | 5950kg | ||
| Gross Weight | 8200kg | ||
| Seats | 3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | DFA1081SJ12N3 | ||
| Front/Rear Overhang | 1150/1910mm | ||
| Number of Leaf Springs | 8/10+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800mm | ||
| Axle Load | 3000/5200kg | ||
| Front Wheel Track | 1740mm | ||
| Rear Wheel Track | 1586mm | ||
| Approaching/Departuring Angle | 20/11° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50-16 14PR,7.50R16 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| CY4102-N5K | Dongfeng Chaoyang Diesel Co., Ltd. | 105kW | 3856ml |
