| Basic Information | |||

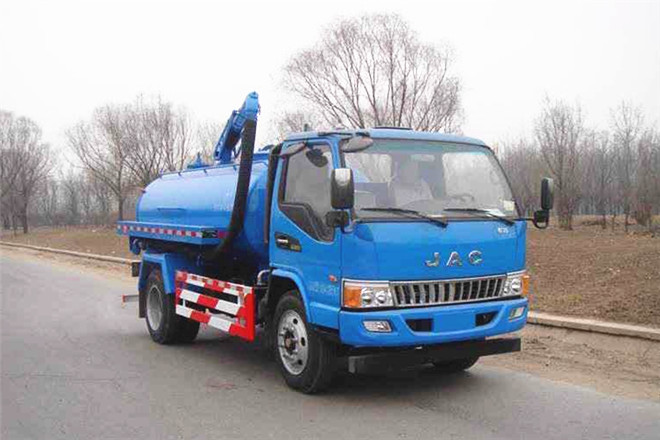

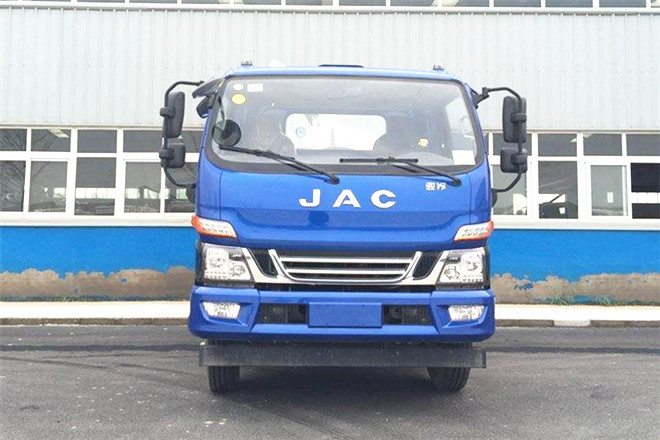

| Usage | Suction-type Sewer Scavenger | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 6180mm | ||
| Width | 2270mm | ||
| Height | 2800mm | ||
| Curb Weight | 5540kg | ||
| Gross Weight | 10495kg | ||
| Seats | 3 | ||
| Max Speed | 98km/h | ||
| Chassis | |||
| Chassis Model | HFC1100P91K1C7ZS | ||
| Front/Rear Overhang | 1115/1700mm | ||
| Number of Leaf Springs | 8/9+9 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3365,3800mm | ||
| Axle Load | 3800/6695kg | ||
| Front Wheel Track | 1660,1690mm | ||
| Rear Wheel Track | 1724mm | ||
| Approaching/Departuring Angle | 27/13° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50-20 14PR,7.50R20 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF3.8E6154 | Beijing Foton Cummins Engine Corporation | 115kW | 3760ml |
