| Basic Information | |||

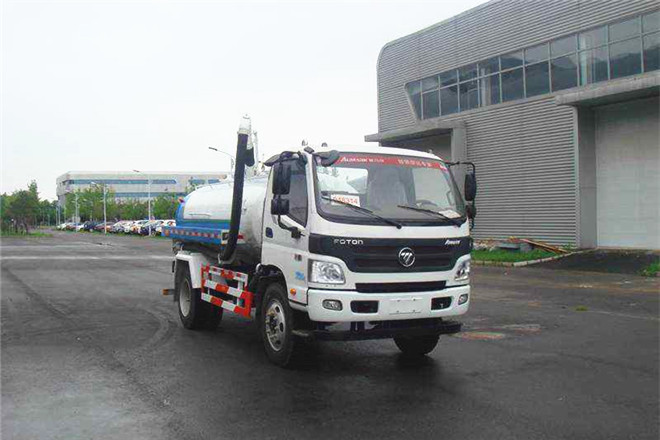

| Usage | Suction-type Sewer Scavenger | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national V emission standards, GB3847-2005 | ||
| Length | 6100mm | ||
| Width | 2190mm | ||
| Height | 3010mm | ||
| Curb Weight | 5150kg | ||
| Gross Weight | 10450kg | ||
| Seats | 3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | BJ1109VGJEA-A2 | ||
| Front/Rear Overhang | 1185/1555mm | ||
| Number of Leaf Springs | 9/11+7,9/10+10,3/7+6,3/8+6,7/9+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 4180/6270kg | ||
| Front Wheel Track | 1710,1740mm | ||
| Rear Wheel Track | 1630,1680,1495mm | ||
| Approaching/Departuring Angle | 22/15° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25-20 14PR,8.25R20 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF3.8E6154 | Beijing Foton Cummins Engine Corporation | 115kW | 3760ml |
