| Basic Information | |||

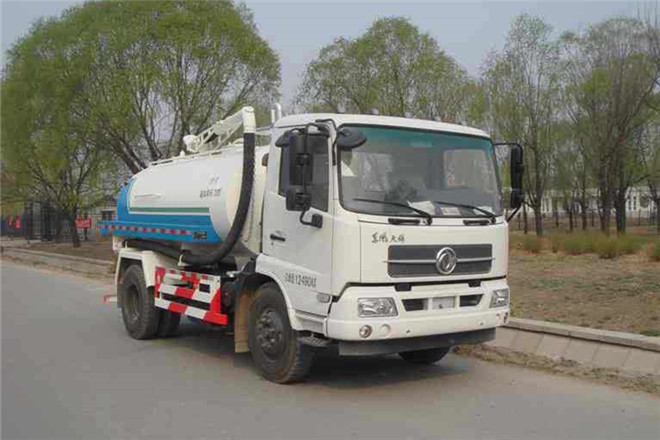

| Usage | Suction-type Sewer Scavenger | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2005 national V emission standards | ||
| Length | 6420mm | ||
| Width | 2380mm | ||
| Height | 3000mm | ||
| Curb Weight | 6270kg | ||
| Gross Weight | 12490kg | ||
| Seats | 3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | DFH1120B | ||
| Front/Rear Overhang | 1430/1490mm | ||
| Number of Leaf Springs | 11/11+10 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3500mm | ||
| Axle Load | 4440/8050kg | ||
| Front Wheel Track | 1815mm | ||
| Rear Wheel Track | 1800,1820mm | ||
| Approaching/Departuring Angle | 22/17° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25-20 16PR,8.25R20 14PR,8.25R20 16PR,9.00-20 14PR,9.00-20 16PR,9.00R20 14PR,9.00R20 16PR,275/70R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISD160 50 | Dongfeng Cummins Engine Co., Ltd. | 118kW | 4500ml |
| EQH160-53 | Dongfeng Trucks Co., Ltd. | 118kW | 4752ml |
