| Basic Information | |||

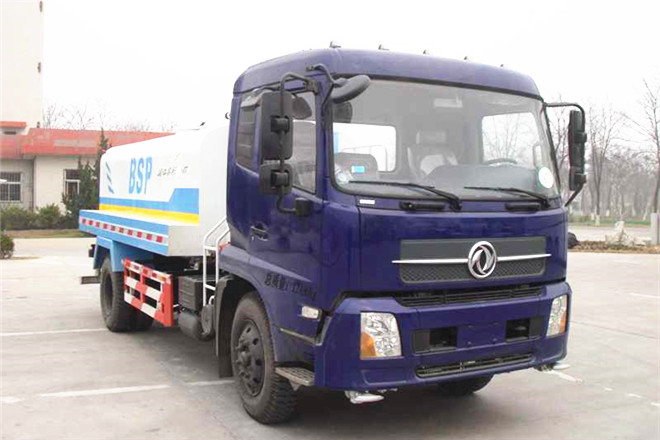

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2005 national Ⅳ emission standards | ||
| Length | 7800mm | ||
| Width | 2440mm | ||
| Height | 2760mm | ||
| Curb Weight | 6860kg | ||
| Gross Weight | 12490kg | ||
| Seats | 3 | ||
| Max Speed | 85km/h | ||
| Chassis | |||
| Chassis Model | DFL1120B4 | ||
| Front/Rear Overhang | 1430/1910mm | ||
| Number of Leaf Springs | 7/9+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4200,4500mm | ||
| Axle Load | 4985/7505kg | ||
| Front Wheel Track | 1880mm | ||
| Rear Wheel Track | 1800mm | ||
| Approaching/Departuring Angle | 17/13° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00-20,9.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISDe160 40 | Dongfeng Cummins Engine Co., Ltd. | 118kW | 4500ml |
| ISDe180 40 | Dongfeng Cummins Engine Co., Ltd. | 132kW | 4500ml |
| EQH180-40 | Dongfeng Trucks Co., Ltd. | 132kW | 4752ml |
| ISB180 40 | Dongfeng Cummins Engine Co., Ltd. | 132kW | 5900ml |
