| Basic Information | |||

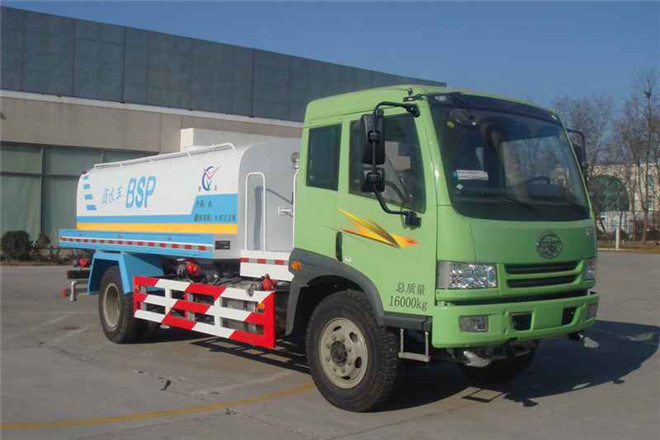

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2005 national Ⅳ emission standards | ||
| Length | 7900mm | ||
| Width | 2480mm | ||
| Height | 2690mm | ||
| Curb Weight | 6400kg | ||
| Gross Weight | 16000kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | CA1163P9K1L3E4 | ||
| Front/Rear Overhang | 1330/2070mm | ||
| Number of Leaf Springs | 11/7+6,3/7+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4500mm | ||
| Axle Load | 6000/10000kg | ||
| Front Wheel Track | 1800mm | ||
| Rear Wheel Track | 1800mm | ||
| Approaching/Departuring Angle | 16/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25-20,8.25R20,9.00-20,9.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| BF4M2012-16E4R | China FAW Group Corporation | 113kW | 4040ml |
| BF4M2012-16E4 | China FAW Group Corporation | 121kW | 4040ml |
