| Basic Information | |||

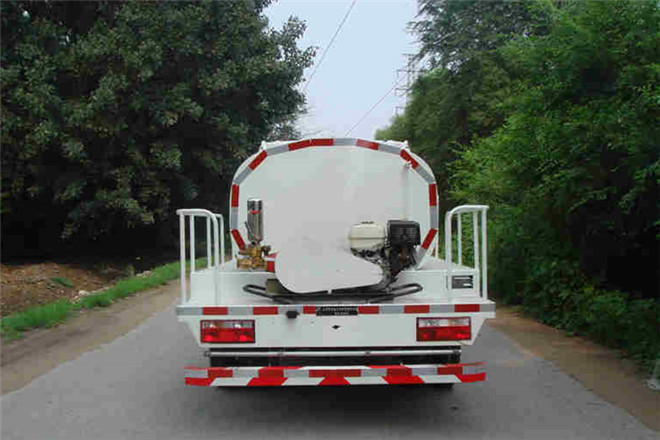

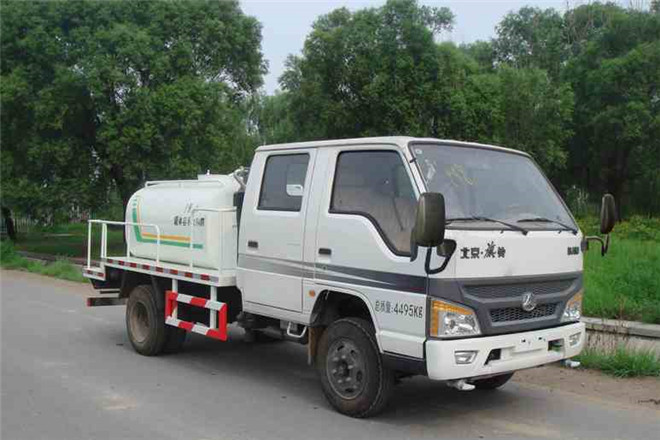

| Usage | Tree Sprinkling Tanker | ||
| Fuel Type | Gasoline | ||
| Emission Standard | GB14762-2008 national Ⅳ emission standards, GB18285-2005,GB11340-2005,GB14763-2005 | ||
| Length | 5780mm | ||
| Width | 1910mm | ||
| Height | 2120mm | ||
| Curb Weight | 2320kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2+3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | BJ1040PAD42D | ||
| Front/Rear Overhang | 1025/1555mm | ||
| Number of Leaf Springs | 9/9+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3200,3360mm | ||
| Axle Load | 2000/2495kg | ||
| Front Wheel Track | 1460mm | ||
| Rear Wheel Track | 1470mm | ||
| Approaching/Departuring Angle | 25/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50-16LT 10PR,6.50R16LT 10PR,7.00-16LT 8PR,7.00R16LT 8PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 491QMB | Shenyang Xinguang Huachen Automibile Engine Co., Ltd. | 82kW | 2237ml |
