| Basic Information | |||

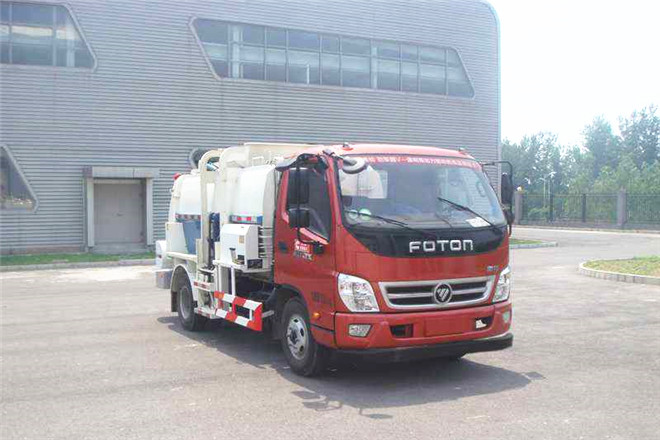

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 6130mm | ||
| Width | 2220mm | ||
| Height | 2440mm | ||
| Curb Weight | 5100kg | ||
| Gross Weight | 8280kg | ||
| Seats | 3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | BJ1089VDJEA-F3 | ||
| Front/Rear Overhang | 1120/1650mm | ||
| Number of Leaf Springs | 3+1/6+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 3000/5280kg | ||
| Front Wheel Track | 1730mm | ||
| Rear Wheel Track | 1590mm | ||
| Approaching/Departuring Angle | 22/15° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50-16,7.50R16 14PR,7.50R16 16PR,8.25-16,8.25R16 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF3.8E6154 | Beijing Foton Cummins Engine Corporation | 115kW | 3760ml |
