| Basic Information | |||

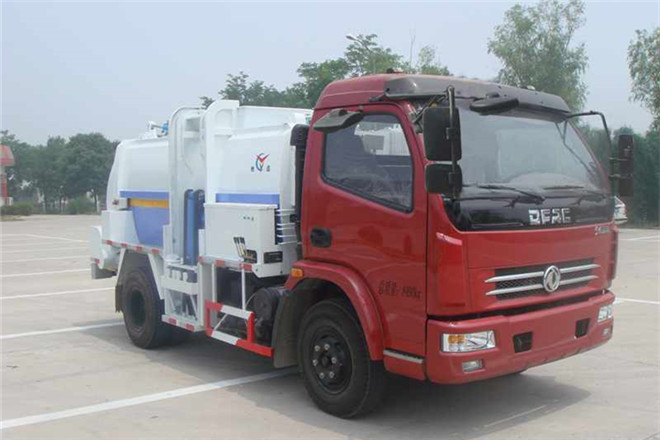

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2005 national Ⅳ emission standards | ||
| Length | 5870mm | ||
| Width | 2202mm | ||
| Height | 2460mm | ||
| Curb Weight | 5810kg | ||
| Gross Weight | 8490kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | EQ1080SJ2BDA | ||
| Front/Rear Overhang | 1180/1590mm | ||
| Number of Leaf Springs | 8/9+5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3100mm | ||
| Axle Load | 2971/5519kg | ||
| Front Wheel Track | 1770,1750mm | ||
| Rear Wheel Track | 1640,1586mm | ||
| Approaching/Departuring Angle | 25/25° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25-16,8.25R16 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISDe140 40 | Dongfeng Cummins Engine Co., Ltd. | 103kW | 4500ml |
| CY4102-CE4C | Dongfeng Chaoyang Diesel Co., Ltd. | 91kW | 3856ml |
