| Basic Information | |||

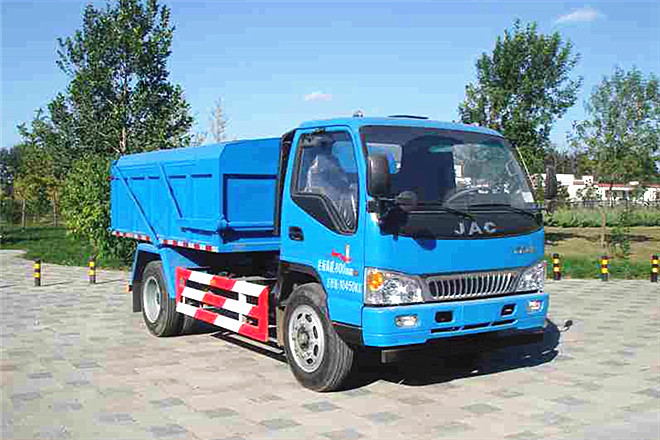

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 6070mm | ||
| Width | 2350mm | ||
| Height | 2390mm | ||
| Curb Weight | 5270kg | ||
| Gross Weight | 10450kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | HFC1100P81K3C7 | ||
| Front/Rear Overhang | 1125/1580mm | ||
| Number of Leaf Springs | 8/9+9 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3365mm | ||
| Axle Load | 3760/6690kg | ||
| Front Wheel Track | 1685,1710mm | ||
| Rear Wheel Track | 1724mm | ||
| Approaching/Departuring Angle | 29/19° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50-20 14PR,7.50R20 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF3.8s5141 | Beijing Foton Cummins Engine Corporation | 105kW | 3760ml |
| ISF3.8E6154 | Beijing Foton Cummins Engine Corporation | 115kW | 3760ml |
