| Basic Information | |||

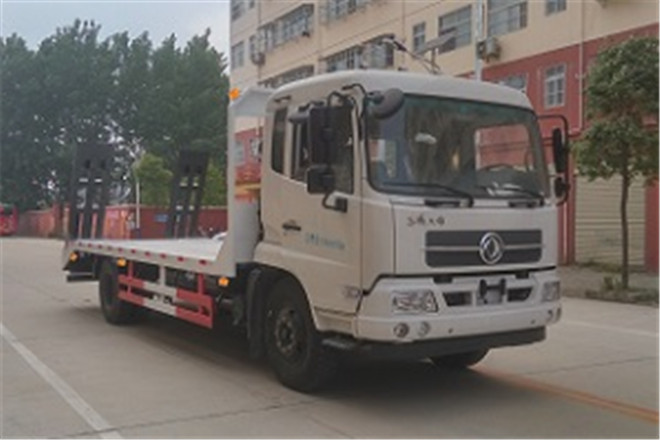

| Usage | Delivery Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 9000,8600,7300mm | ||
| Width | 2500mm | ||
| Height | 2820,3380mm | ||
| Curb Weight | 6420kg | ||
| Gross Weight | 15800kg | ||
| Seats | 3 | ||
| Max Speed | 98km/h | ||
| Chassis | |||
| Chassis Model | DFH1160BX1JV | ||
| Front/Rear Overhang | 1430/2570,1430/2470,1430/2070,1365/2635,1365/2535,1365/2135mm | ||
| Number of Leaf Springs | 11/11+10,8/10+8,3/4+3,2/3+2 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4700,5000,3800,4500,3950mm | ||
| Axle Load | 5600/10200kg | ||
| Front Wheel Track | 1815,1905,1855mm | ||
| Rear Wheel Track | 1800mm | ||
| Approaching/Departuring Angle | 20/12,20/13,20/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 16PR,275/80R22.5,10R22.5 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| EQH160-52 | Dongfeng Trucks Co., Ltd. | 118kW | 4752ml |
| EQH160-53 | Dongfeng Trucks Co., Ltd | 118kW | 4752ml |
| EQH180-52 | Dongfeng Trucks Co., Ltd | 132kW | 4752ml |
| EQH180-53 | Dongfeng Trucks Co., Ltd | 132kW | 4752ml |
| YC4S170-50 | Guangxi Yuchai Machinery Co., Ltd. | 125kW | 3767ml |
