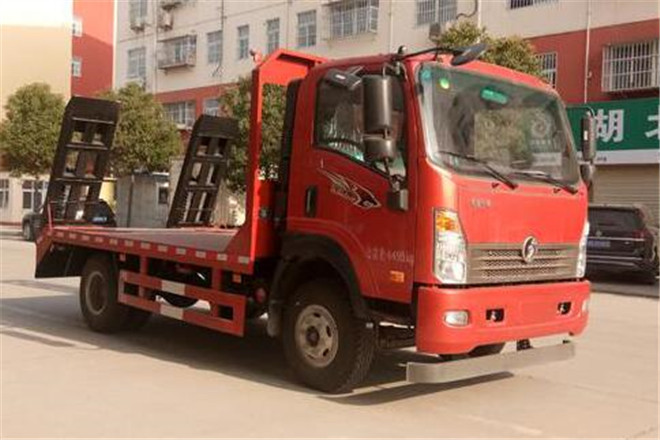

CLW5042TPBC5 Powered Platform Vehicle for Transportation

Basic Information
Usage	Delivery Vehicle
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	5748,5998mm
Width	2300,2400,2550mm
Height	2680mm
Curb Weight	2560kg
Gross Weight	4495kg
Seats	3
Max Speed	100km/h
Chassis
Chassis Model	CDW1040HA1R5
Front/Rear Overhang	1285/1103,1285/1353,1285/863,1285/1113mm
Number of Leaf Springs	3/5+3,9/10+8,11/11+9
Number of Axles	2
Wheelbase	3360,3600mm
Axle Load	1705/2790kg
Front Wheel Track	1765,1760mm
Rear Wheel Track	1645,1630,1795mm
Approaching/Departuring Angle	21/22,21/20,21/19,21/22°
Tire
Number of Tires	6
Tire	7.50-16LT 6PR,7.50R16LT 6PR,8.25-16LT 6PR,8.25R16LT 6PR
Engine
Model	Brand	Power	Displacement
D25TCIE2	Kunming Yunnei Power Co., Ltd.	96kW	2499ml
YC4FA115-50	Guangxi Yuchai Machinery Co., Ltd.	85kW	2982ml
4DX23-130E5	FAW Jiefang Wuxi Diesel Plant	97.5kW	3857ml
YNF40E3	Kunming Yunnei Power Co., Ltd.	105kW	3920ml
JE4D28Q5F	Jiangxi ISUZU Engine Co., Ltd.	97kW	2776ml
YN33CRE1	Kunming Yunnei Power Co., Ltd.	85kW	3298ml
YN38CRE1	Kunming Yunnei Power Co., Ltd.	95kW	3760ml
D25TCIE1	Kunming Yunnei Power Co., Ltd.	105kW	2499ml
YCD4F4S-130	Guangxi Yuchai Machinery Co., Ltd.	97kW	3922ml
ISF3.8s5154	Beijing Foton Cummins Engine Co., Ltd.	115kW	3760ml
D30TCIE1	Kunming Yunnei Power Co., Ltd.	115kW	2977ml
YC4D150-50	Guangxi Yuchai Machinery Co., Ltd.	110kW	4214ml
YNF40E2	Kunming Yunnei Power Co., Ltd.	115kW	3920ml
NGD3.0-CS5D	Dongfeng Choayang Diesel Co., Ltd.	115kW	2968ml
WP3NQ160E50	Weichai Holding Group Co., Ltd.	118kW	2970ml
