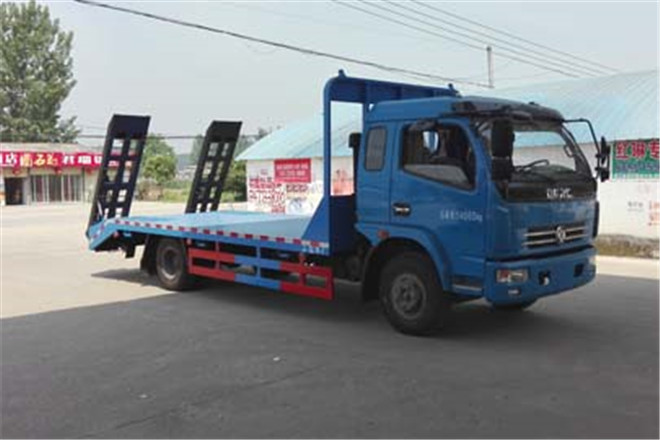

CLW5140TPBT5 Powered Platform Vehicle for Transportation
| Basic Information |
| Usage |
Delivery Vehicle |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
8000mm |
| Width |
2400mm |
| Height |
2770mm |
| Curb Weight |
5000kg |
| Gross Weight |
14060kg |
| Seats |
3 |
| Max Speed |
103km/h |
| Chassis |
| Chassis Model |
EQ1140LJ8BDE |
| Front/Rear Overhang |
1180/2420,1195/2405mm |
| Number of Leaf Springs |
8/10+7 |
| Number of Axles |
2 |
| Wheelbase |
4400mm |
| Axle Load |
4860/9200kg |
| Front Wheel Track |
1745,1800mm |
| Rear Wheel Track |
1640,1800mm |
| Approaching/Departuring Angle |
21.5/11° |
| Tire |
| Number of Tires |
6 |
| Tire |
8.25R20 |
| Engine |
| Model |
CY4SK251,YC4S150-50,ISF3.8s5154 |
| Power |
115,110,115kW |
| Brand |
Dongfeng Chaoyang Diesel Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Bejing Foton Cummins Engine Co., Ltd. |
| Displacement |
3856,3767,3760ml |
