| Basic Information |
| Usage |

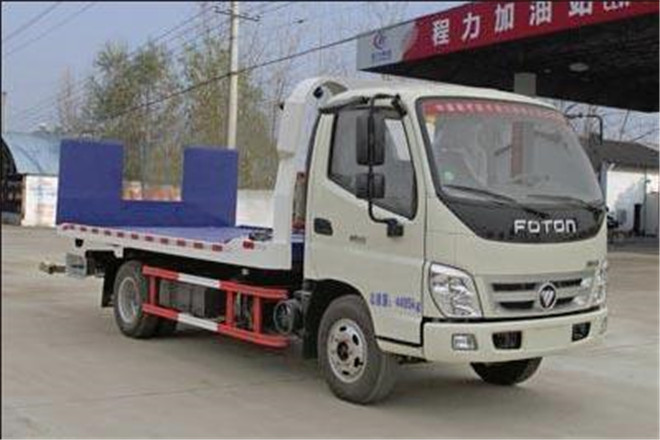

Road-block Removal Truck |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
5995mm |
| Width |
2300mm |
| Height |
2350mm |
| Curb Weight |
4100kg |
| Gross Weight |
4495kg |
| Seats |
2，3 |
| Max Speed |
110km/h |
| Chassis |
| Chassis Model |
BJ1049V9JEA-FE |
| Front/Rear Overhang |
1120/1515mm |
| Number of Leaf Springs |
3+1/6+7,3/7+6,3/8+6,3/4+2,3/5+2,9/11+7 |
| Number of Axles |
2 |
| Wheelbase |
3360mm |
| Axle Load |
1800/2695kg |
| Front Wheel Track |
1530,1730,1590,1710mm |
| Rear Wheel Track |
1485,1590,1615,1800,1630,1680 mm |
| Approaching/Departuring Angle |
21/12° |
| Tire |
| Number of Tires |
6 |
| Tire |
7.00-16 8PR,7.00R16 8PR,7.50-16 6PR,7.50R16 6PR,8.25R16LT 6PR |
| Engine |
| Model |
ISF2.8s5129T,ISF3.8s5141,ISF3.8s5154,ISF2.8s5R117,4J28TC3,ISF2.8s5148T,4J28TC5,ISF2.8s5F130,CY4SK251,WP3.7Q140E50,4B2-115C50 |
| Power |
96，105，115，87，81，110，81，96，115，103，85kW |
| Brand |
Beijing Foton Cummins Engine Corporation;Beijing Foton Cummins Engine Corporation;Beijing Foton Cummins Engine Corporation;Beijing Foton Cummins Engine Corporation;Foton Motor Co., Ltd.;Foton Motor Co., Ltd.;Foton Motor Co., Ltd.;Beijing Foton Cummins Engine Corporation;Dongfeng Chaoyang Diesel Co., Ltd.;Weichai Power Yangzhou Diesel Co., Ltd.;Anhui Quanchai Power Co., Ltd. |
| Displacement |
2780,3760,3760,2780,2771,2780,2771,2780,3856,3660,2545ml |
