| Basic Information |
| Usage |

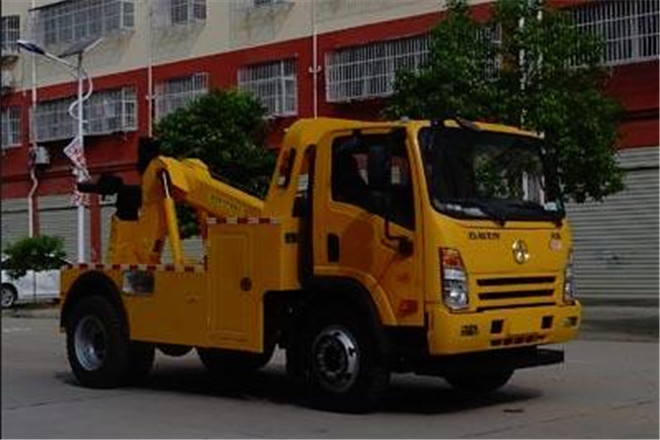

Road-block Removal Truck |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
5545,5745,5845,5995mm |
| Width |
2220mm |
| Height |
2600mm |
| Curb Weight |
3800kg |
| Gross Weight |
4495kg |
| Seats |
2,3 |
| Max Speed |
90km/h |
| Chassis |
| Chassis Model |
CGC1042HDE33E |
| Front/Rear Overhang |
1150/1295,1150/1045mm |
| Number of Leaf Springs |
9/9+6,9/11+8,4/3+3,9/3+3,4/9+6,3/3+3,8/10+8,1/1+1,3/5+3 |
| Number of Axles |
2 |
| Wheelbase |
3100,3300,3550,3800,3400mm |
| Axle Load |
1800/2695kg |
| Front Wheel Track |
1665,1740,1770,1590,1804,1840,1833mm |
| Rear Wheel Track |
1650,1700,1540,1790,1811,1900,1835,1888,1860,1615,1800mm |
| Approaching/Departuring Angle |
20/28,20/29° |
| Tire |
| Number of Tires |
6 |
| Tire |
7.50-16 6PR,7.50R16 6PR,8.25-16 6PR,8.25R16 6PR,7.00-16 8PR,7.00R16 8PR |
| Engine |
| Model |
WP3.7Q130E50,WP4.1Q140E50,YNF40E1,YN38CRE1,YN33CRE1,4B2-115C50,4F1-150C50,D30TCIE4,YC4D140-50,YC4S160-50,4JJ1GD,WP4.1Q160E50,YNF40E2,D30TCIE2 |
| Power |
96,103,125,95,85,85,110,115,103,118,120,115,115,110kW |
| Brand |
Weichai Power Yangzhou Diesel Co., Ltd.;Weichai Power Yangzhou Diesel Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Anhui Quanchai Power Co., Ltd.;Anhui Quanchai Power Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Jiangxi ISUZU Engine Co., Ltd.;Weichai Power Yangzhou Diesel Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Kunming Yunnei Power Co., Ltd. |
| Displacement |
3660,4088,3920,3760,3298,2545,3857,2977,4214,3767,2999,4088,3920,2977ml |
