| Basic Information |
| Usage |

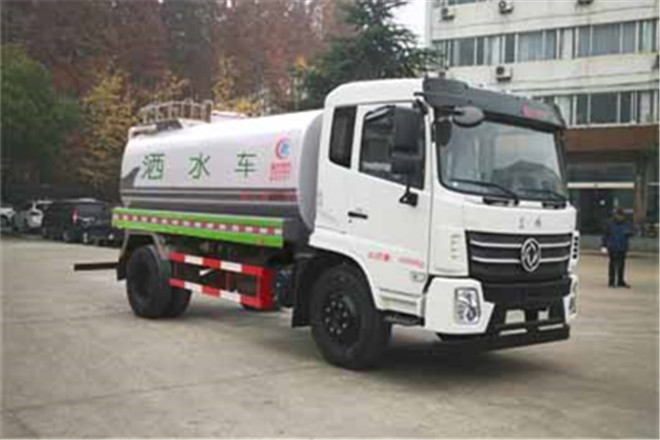

Street Sprinkler |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
8665,8625,8465,8425,7915,7875mm |
| Width |
2500mm |
| Height |
3200mm |
| Curb Weight |
6935kg |
| Gross Weight |
16000kg |
| Seats |
2,3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
EQ1160GSZ6DJ |
| Front/Rear Overhang |
1475/2450,1515/2450mm |
| Number of Leaf Springs |
8/10+8,11/11+10 |
| Number of Axles |
2 |
| Wheelbase |
3950,4500,4700,5100mm |
| Axle Load |
5600/10400kg |
| Front Wheel Track |
1750,1800,1860,1910,1940mm |
| Rear Wheel Track |
1650,1700,1750,1800,1860mm |
| Approaching/Departuring Angle |
20/12° |
| Tire |
| Number of Tires |
6 |
| Tire |
9.00R20 16PR,10.00-20 16PR,10.00-20 18PR,10.00R20 16PR,10.00R20 18PR,275/80R22.5 16PR,275/80R22.5 18PR |
| Engine |
| Model |
D4.0NS6B170,D4.0NS6B195,B6.2NS6B210 |
| Power |
125,143,154kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd. |
| Displacement |
4000,4000,6200ml |
