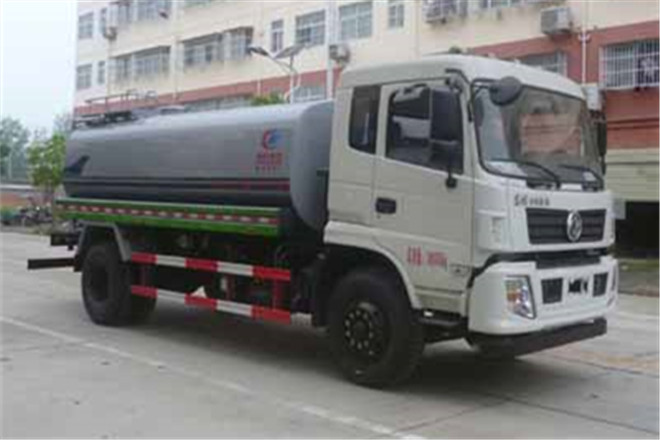

CLW5183GSSD5 Sprinkler

Basic Information
Usage	Street Sprinkler
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards,GB3847-2005
Length	8050,8250,8100mm
Width	2520mm
Height	3200mm
Curb Weight	7155kg
Gross Weight	18000kg
Seats	2,3
Max Speed	90km/h
Chassis
Chassis Model	EQ1180GD5DJ1
Front/Rear Overhang	1250/2300,1450/2300,1250/2100,1450/2100,1300/2300,1300/2100mm
Number of Leaf Springs	8/9+7,8/10+7,3/4+3,9/12+10,8/10+8,7/9+6,11/11+10
Number of Axles	2
Wheelbase	3650,3800,3950,4200,4400,4500,4700,5100,5600,3700,3400,3600,5150mm
Axle Load	6500/11500kg
Front Wheel Track	1810,1940,1780,1750mm
Rear Wheel Track	1800,1860,1750,1700,1830mm
Approaching/Departuring Angle	25/13,23/13,25/14,23/14°
Tire
Number of Tires	6
Tire	10.00-20 18PR,10.00R20 18PR,11.00-20 16PR,11.00R20 18PR,295/80R22.5 18PR,315/80R22.5 16PR
Engine
Model	Brand	Power	Displacement
YC4E140-56	Guangxi Yuchai Machinery Co., Ltd.	103kW	4260ml
YC4E160-56	Guangxi Yuchai Machinery Co., Ltd.	118kW	4260ml
YC4EG140-50	Guangxi Yuchai Machinery Co., Ltd.	105kW	4730ml
YC4FA130-50	Guangxi Yuchai Machinery Co., Ltd.	95kW	2982ml
YC4S150-50	Guangxi Yuchai Machinery Co., Ltd.	110kW	3767ml
ISB170 50	Dongfeng Cummins Engine Co., Ltd.	125kW	5900ml
ISD180 50	Dongfeng Cummins Engine Co., Ltd.	132kW	4500ml
ISB190 50	Dongfeng Cummins Engine Co., Ltd.	140kW	5900ml
YC6JA180-50	Guangxi Yuchai Machinery Co., Ltd.	132kW	6870ml
WP3.7Q140E50	Weichai Power Yangzhou Diesel Co., Ltd.	103kW	3660ml
WP4.1Q160E50	Weichai Power Yangzhou Diesel Co., Ltd.	115kW	4088ml
ISB180 50	Dongfeng Cummins Engine Co., Ltd.	132kW	5900ml
YC4EG185-50	Guangxi Yuchai Machinery Co., Ltd.	136kW	4730ml
