| Basic Information |
| Usage |

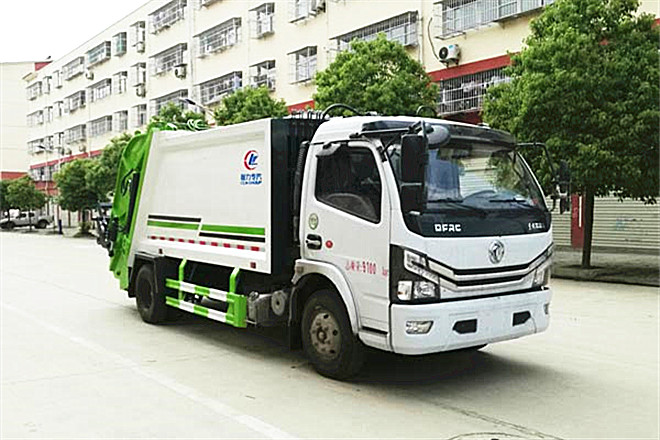

Refuse Collector |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
7340mm |
| Width |
2350mm |
| Height |
2800mm |
| Curb Weight |
6500kg |
| Gross Weight |
9100kg |
| Seats |
3 |
| Max Speed |
103km/h |
| Chassis |
| Chassis Model |
EQ1095SJ8CD2 |
| Front/Rear Overhang |
1130/2160mm |
| Number of Leaf Springs |
8/10+7,12/12+9 |
| Number of Axles |
2 |
| Wheelbase |
3308,3800mm |
| Axle Load |
3300/5800kg |
| Front Wheel Track |
1745mm |
| Rear Wheel Track |
1586,1630, 1650,1800mm |
| Approaching/Departuring Angle |
21/12° |
| Tire |
| Number of Tires |
6 |
| Tire |
7.50R16 |
| Engine |
| Model |
YCY24140-60,ZD30D16-6N,D25TCIF1,D30TCIF1,NV30-C6G,NV30-C6D,D4.0NS6B160,Q28-130E60 |
| Power |
103,120,110,125,115,120,118,96kW |
| Brand |
Guangxi Yuchai Machinery Co., Ltd.;Dongfeng Light-duty Engine Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Anhui Quanchai Power Co., Ltd. |
| Displacement |
2360,2953,2499,2977,2968,2968,4000,2800ml |
