| Basic Information |
| Usage |

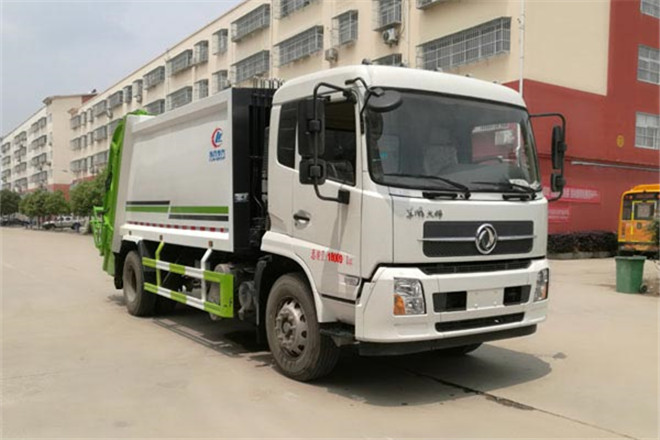

Refuse Collector |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
8890,8860,8690,8660mm |
| Width |
2500mm |
| Height |
3300mm |
| Curb Weight |
10300kg |
| Gross Weight |
18000kg |
| Seats |
2,3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
DFH1180EX8 |
| Front/Rear Overhang |
1400/2510,1430/2510mm |
| Number of Leaf Springs |
7/9+6,8/10+8,8/9+6 |
| Number of Axles |
2 |
| Wheelbase |
3800,3950,4200,4500,4700,5000,5300,5800mm |
| Axle Load |
6500/11500kg |
| Front Wheel Track |
1876,1896,1920,1950mm |
| Rear Wheel Track |
1820,1860mm |
| Approaching/Departuring Angle |
17/12° |
| Tire |
| Number of Tires |
6 |
| Tire |
10.00R20 18PR,275/80R22.5 18PR |
| Engine |
| Model |
DDi50E190-60,D4.5NS6B190,D6.7NS6B230,B6.2NS6B210,B6.2NS6B230 |
| Power |
147,140,169,154,169kW |
| Brand |
Dongfeng Trucks Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd. |
| Displacement |
5000,4500,6700,6200,6200ml |
