| Basic Information |
| Usage |

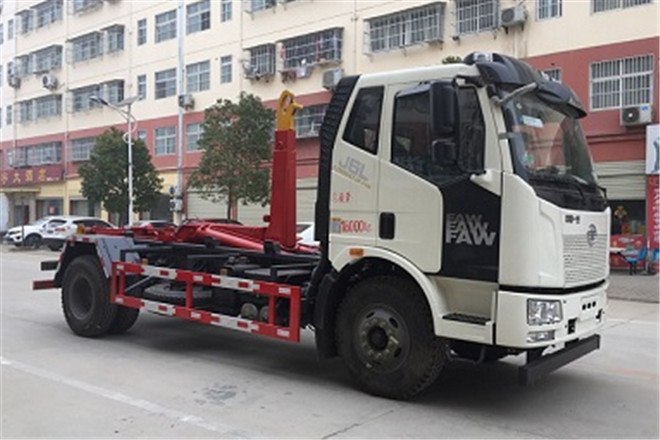

Refuse Collector |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
8080,7780,7480,7280mm |
| Width |
2480mm |
| Height |
3190mm |
| Curb Weight |
7720kg |
| Gross Weight |
18000kg |
| Seats |
3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
CA1180P62K1L2A1E6Z |
| Front/Rear Overhang |
1400/1380,1400/1380,1400/1380,1400/1380mm |
| Number of Leaf Springs |
10/12+8,12/12+8,13/12+8,7/7+6 |
| Number of Axles |
2 |
| Wheelbase |
5300,5000,4700,4500,5600,5800mm |
| Axle Load |
6500/11500kg |
| Front Wheel Track |
1928,1827mm |
| Rear Wheel Track |
1878mm |
| Approaching/Departuring Angle |
17/24,17/24,17/24,17/24° |
| Tire |
| Number of Tires |
6 |
| Tire |
10.00R20,11.00R20,295/80R22.5 |
| Engine |
| Model |
CA4DK1-22E6,CA4DK1-18E6,CA6DH1-24E6 |
| Power |
165,139,179kW |
| Brand |
China FAW Group Corporation; China FAW Group Corporation; China FAW Group Corporation |
| Displacement |
4764,4764,5700ml |
