position : Home>>products>>CLW5040ZDJK5 Compression Docking Refuse Collector

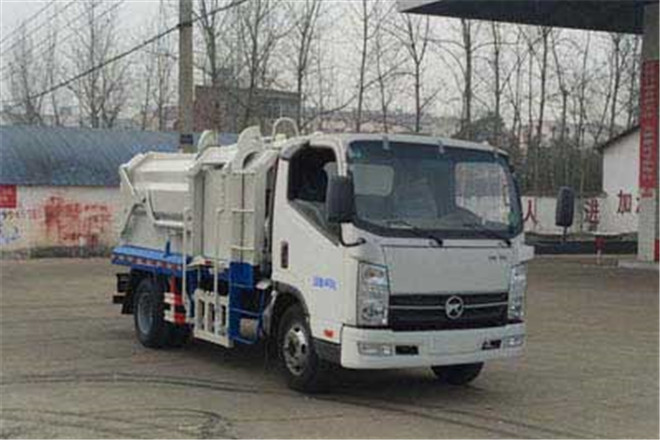

CLW5040ZDJK5 Compression Docking Refuse Collector

CLW5040ZDJK5 Compression Docking Refuse Collector
CLW5040ZDJK5 Compression Docking Refuse Collector
Views:0
Basic Information
Usage Refuse Collector
Fuel Type Diesel
Emission Standard GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length 5790mm
Width 2000mm
Height 2400mm
Curb Weight 3935kg
Gross Weight 4495kg
Seats 2,3
Max Speed 95km/h
Chassis
Chassis Model KMC1042A33D5
Front/Rear Overhang 1135/1355mm
Number of Leaf Springs 7/9+5,3/5+3
Number of Axles 2
Wheelbase 3300mm
Axle Load 1860/2635kg
Front Wheel Track 1540,1600,1680,1570,1500mm
Rear Wheel Track 1550,1600,1790,1490mm
Approaching/Departuring Angle 25/18°
Tire
Number of Tires 6
Tire 7.00-16LT 8PR,7.00R16LT 8PR,7.50-16LT 6PR,7.50R16LT 8PR
Engine
Model Brand Power Displacement
SD4D25R-70 Jiangsu Sida Power Machinery Group Co., Ltd. 70kW 2545ml
YN27CRE1 Kunming Yunnei Power Co., Ltd. 70kW 2672ml
SD4D28R-83 Jiangsu Sida Power Machinery Group Co., Ltd. 83kW 2772ml
4DW93-84E5 FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant 64kW 2540ml
JE493ZLQ5 Jiangxi ISUZU Engine Co., Ltd. 85kW 2771ml
4DW94-95E5 FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant 72kW 2720ml
YCD4N4S-110 Guangxi Yuchai Machinery Co., Ltd. 80kW 2799ml
WP2.3Q110E50 Weichai Power Yangzhou Diesel Co., Ltd. 81kW 2290ml
YN27CRE10 Kunming Yunnei Power Co., Ltd. 85kW 2672ml
D19TCIE3 Kunming Yunnei Power Co., Ltd. 85kW 1910ml
WP2.3NQ130E50 Weichai Holding Group Co., Ltd. 96kW 2290ml
CA4DB1-13E5 FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant 95kW 2210ml
