| Basic Information |
| Usage |

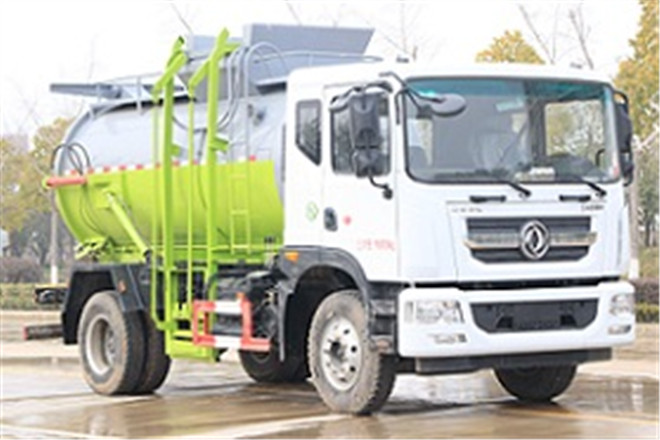

Refuse Collector |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
7600,7300,7100mm |
| Width |
2480mm |
| Height |
3400mm |
| Curb Weight |
7400kg |
| Gross Weight |
16000kg |
| Seats |
3 |
| Max Speed |
90km/h |
| Chassis |
| Chassis Model |
EQ1165LJ9BDE |
| Front/Rear Overhang |
1230/1920,1230/2170,1230/1170,1230/1370,1230/1370mm |
| Number of Leaf Springs |
8/10+7 |
| Number of Axles |
2 |
| Wheelbase |
3950,4500,4700,3400,3700,5200,5600mm |
| Axle Load |
5600/10400kg |
| Front Wheel Track |
1858,1949,1765,1891mm |
| Rear Wheel Track |
1806,1865,1750mm |
| Approaching/Departuring Angle |
19/16,19/18,19/14,19/15,19/15° |
| Tire |
| Number of Tires |
6 |
| Tire |
9.00R20,10.00R20 |
| Engine |
| Model |
YC4EG170-50,YC4EG185-50,ISB180 50,ISD160 50,ISB210 50,YCD4P4S-170,YCD4P4S-140,YC4S160-50,YC4D150-50 |
| Power |
125,136,132,118,155,125,105,118,110kW |
| Brand |
Guangxi Yuchai Machinery Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd. |
| Displacement |
4730,4730,5900,4500,5900,4580,4580,3767,4214ml |
