| Basic Information | |||

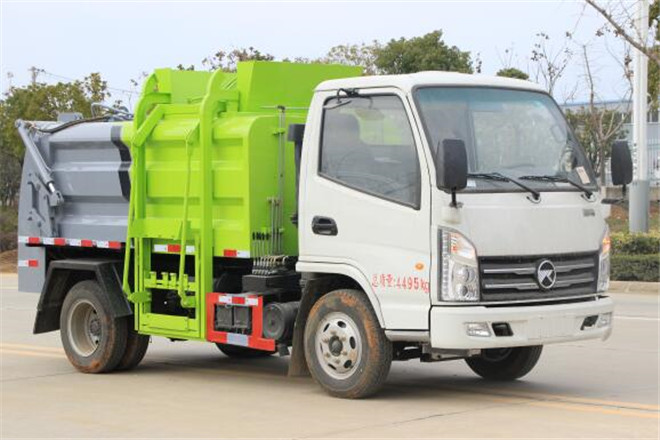

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 5260mm | ||
| Width | 2040mm | ||
| Height | 2350mm | ||
| Curb Weight | 4005kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | KMC3041HA280DP6 | ||
| Front/Rear Overhang | 1125/1335mm | ||
| Number of Leaf Springs | 3/5+3,7/9+5,9/8+4 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2800,3060mm | ||
| Axle Load | 1640/2855kg | ||
| Front Wheel Track | 1500,1530,1560mm | ||
| Rear Wheel Track | 1490mm | ||
| Approaching/Departuring Angle | 17/20° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50R16LT 10PR,6.50R16LT 12PR,7.00R16LT 8PR,7.00R16LT 10PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP2.3NQ130E61 | Weichai Holding Group Co., Ltd. | 96kW | 2289ml |
| CA4DB1-13E6 | China FAW Group Corporation | 95kW | 2207ml |
