| Basic Information |
| Usage |

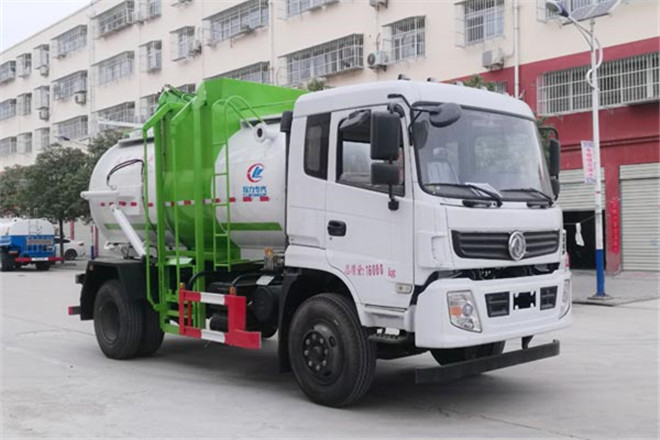

Refuse Collector |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
7220,7260mm |
| Width |
2500mm |
| Height |
3350mm |
| Curb Weight |
7100kg |
| Gross Weight |
16000kg |
| Seats |
3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
EQ1160GSZ6DJ |
| Front/Rear Overhang |
1475/1795,1515/1795mm |
| Number of Leaf Springs |
8/10+8,11/11+10 |
| Number of Axles |
2 |
| Wheelbase |
3950,4500,4700,5100mm |
| Axle Load |
5600/10400kg |
| Front Wheel Track |
1750,1800,1860,1910,1940mm |
| Rear Wheel Track |
1650,1700,1750,1800,1860mm |
| Approaching/Departuring Angle |
23/18° |
| Tire |
| Number of Tires |
6 |
| Tire |
9.00R20 16PR,10.00-20 16PR,10.00-20 18PR,10.00R20 16PR,10.00R20 18PR,275/80R22.5 16PR,275/80R22.5 18PR |
| Engine |
| Model |
D4.0NS6B170,D4.0NS6B195,B6.2NS6B210 |
| Power |
125,143,154kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd. |
| Displacement |
4000,4000,6200ml |
