| Basic Information | |||

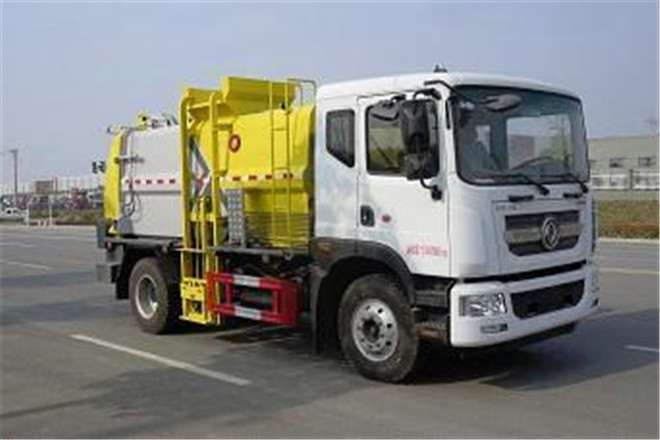

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 8150,7850,7650,7350,7500,6950mm | ||
| Width | 2480mm | ||
| Height | 3150mm | ||
| Curb Weight | 7500kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2,3 | ||
| Max Speed | 105km/h | ||
| Chassis | |||
| Chassis Model | EQ1185LJ9CDE | ||
| Front/Rear Overhang | 1260/1740,1260/1740,1260/1390,1260/1390,1260/1290,1260/1290mm | ||
| Number of Leaf Springs | 8/10+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3950,4500,4700,5000,5300,5600mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1862,1933,1949mm | ||
| Rear Wheel Track | 1806,1865mm | ||
| Approaching/Departuring Angle | 19/18,19/18,19/17,19/19,19/19,19/19° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 295/80R22.5,10.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 154kW | 6200ml |
| D4.5NS6B220 | Dongfeng Cummins Engine Co., Ltd. | 162kW | 4500ml |
| D4.0NS6B195 | Dongfeng Cummins Engine Co., Ltd. | 143kW | 4000ml |
| YCS04200-68 | Guangxi Yuchai Machinery Co., Ltd. | 147kW | 4156ml |
| CY4SK761 | Dongfeng Chaoyang Diesel Co., Ltd. | 145kW | 4087ml |
| B6.2NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6200ml |
