| Basic Information | |||

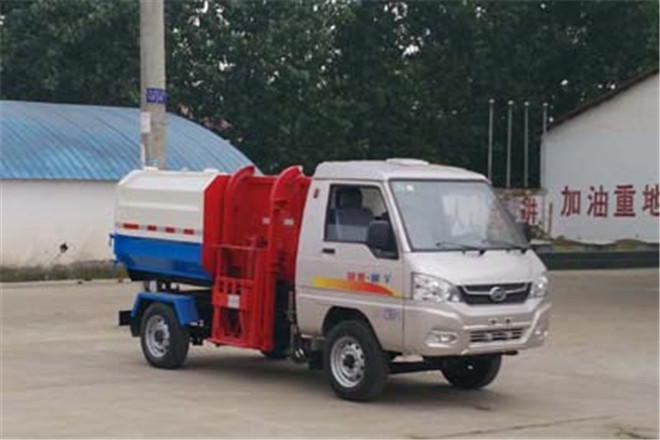

| Usage | Refuse Collector | ||
| Fuel Type | Gasoline | ||
| Emission Standard | GB18352.5-2013 national Ⅴ emission standards | ||
| Length | 4490,4350mm | ||
| Width | 1550mm | ||
| Height | 1900mm | ||
| Curb Weight | 1860kg | ||
| Gross Weight | 2980kg | ||
| Seats | 2 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | KMC1030Q27D5 | ||
| Front/Rear Overhang | 890/900mm | ||
| Number of Leaf Springs | 5/5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2560,2700mm | ||
| Axle Load | 1440/1540kg | ||
| Front Wheel Track | 1260mm | ||
| Rear Wheel Track | 1340mm | ||
| Approaching/Departuring Angle | 25/17° | ||
| Tire | |||
| Number of Tires | 4 | ||
| Tire | 175R14LT | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| LJ465Q-2AE | Liuzhou Wuling Liuji Power Co., Ltd. | 45kW | 1051ml |
| LJ465Q-2AE | Liuzhou Wuling Liuji Power Co., Ltd. | 45kW | 1051ml |
| LJ469Q-1AEB | Liuzhou Wuling Liuji Power Co., Ltd. | 64kW | 1249ml |
